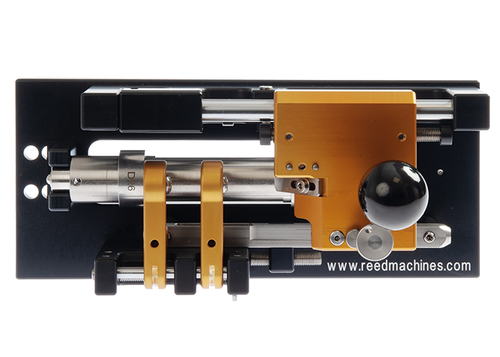

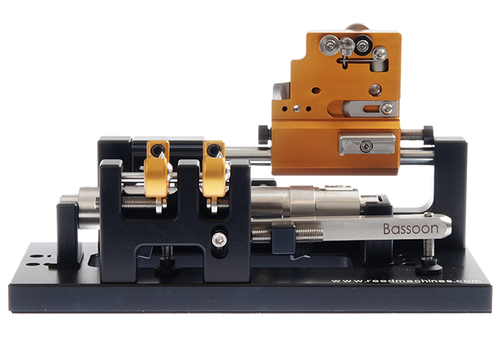

The Reed Machines profiler profiles the cane with a specific difference in thickness between the middle and the sides under an adjustable angle. There are 2 adjustable marking knives. One to make a marking line in the middle of the cane so the chips can come loose and as folding line for the further reed making process, and one to define the collars of the reed. The profiler has a unique collar cutting function. With this function you can make sharp collars on the profiled cane to an adjustable thickness.
The difference in thickness is defined by the cylinder set. We have cylinder sets for all types of bassoon cane and with a wide range of differences.. The angle is defined by the adjustable template set. The template set has an angle for the profile and a steeper angle for the tip. The position of the steeper angle can be set, and it can be activated or de-activated. It is mentioned to make a pre-fab of the tip so there is less cane to take away when you profile the tip with the tip profiler.
The profiler has a modular design which makes it possible to use the profiler for all types of bassoon cane. This means, if you want to use the profiler for more than one type of bassoon cane, you only need to buy an extra cylinder and/or template set.
The profiler base set comes without a cylinder set and template set.
Profiler Dimensions
length: 264mm
width: 114mm
height: 131mm
weight: approx. 3,4kg
Features
- Many differences from the middle to the sides possible.
- Profile angle in the length direction can be set with or without a steeper tip pre-fab angle.
- End position and length of the stroke length can be set.
- Thickness of the profile can be set and with a spindle you can make depth steps during profiling.
- Collar cutting function to make defined and sharp collars to an adjustable thickness.
- Cylinder set with an adjustable length stop so it is easy to positioned the cane symmetrically.
- Cylinder and template set can be changed within 1 minute.
- Marking knives to mark the center line and collar lines.
- Dial indicator set to measure and check the adjustments you do.
Specifications
- The length of the stroke is adjustable between 24mm and 42mm.
- The length of the cane is L ±6mm. L is 120mm for bassoon, 150mm for contra bassoon and 140mm for baroque bassoon.
- The nominal length of the cane for contraforte is 180mm, for contraforte there is no adjustable length stop.
- The dimensions of the profiler base set ar : 264mm x 131mm x 114mm and the weight is: 2,7kg.
